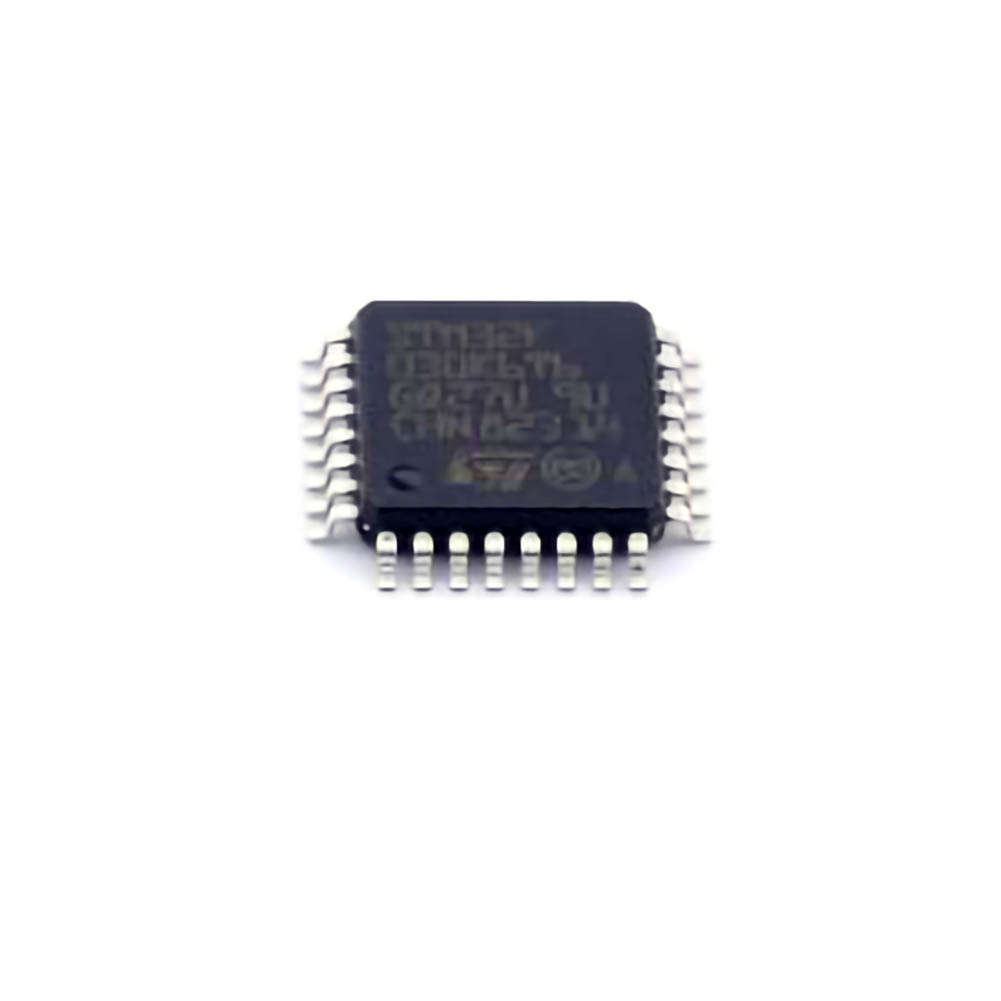

The STM32F030K6T6 microcontroller is widely used in Embedded systems due to its versatility and performance. However, like any electronic component, it can encounter issues that prevent it from functioning correctly. In this article, we’ll explore common troubleshooting techniques for the STM32F030K6T6 to ensure your projects run smoothly, from hardware setup to software configuration.
STM32F030K6T6, microcontroller troubleshooting, STM32 troubleshooting, embedded systems, STM32F030K6T6 problems, STM32 debugging, STM32 hardware issues, embedded development, STM32 software issues
Understanding the Basics and Common Hardware Troubles
The STM32F030K6T6 microcontroller is part of STMicroelectronics' STM32F0 series. This series is well-known for offering affordable solutions for low- Power and cost-sensitive applications. Despite its reliability, the STM32F030K6T6, like any microcontroller, can face several challenges during development and deployment. These issues may arise from both hardware and software configurations.
1.1 Power Supply Issues
One of the most common issues with the STM32F030K6T6 is related to the power supply. A microcontroller’s performance is highly dependent on a stable and adequate power source. Issues such as undervoltage, unstable power, or incorrect power rail connections can cause the microcontroller to behave erratically or fail to start altogether.
Solution: Ensure that the power supply is within the recommended voltage range (typically 2.4V to 3.6V for the STM32F030K6T6). Use a stable voltage regulator with good filtering capacitor s to avoid noise or voltage dips. It’s also a good practice to measure the power rails with a multimeter or oscilloscope to check for fluctuations.
1.2 Incorrect Clock Configuration
The STM32F030K6T6, like many other microcontrollers, relies on an external or internal clock source to generate its system clock. Problems can occur if the clock configuration is incorrect, especially during the initialization phase.
Solution: Review the clock configuration settings in your firmware. If you’re using an external crystal oscillator, check the connections and ensure the oscillator is functioning correctly. You can use STM32CubeMX, a graphical configuration tool, to help set up the clock system. If you suspect a clock issue, use an oscilloscope to check for clock signals at relevant pins.
1.3 Reset Circuitry Problems
A malfunctioning reset circuit can prevent the STM32F030K6T6 from starting up properly. If the microcontroller is stuck in a reset loop or does not initialize at all, it could be due to issues with the reset pin or the external components associated with it.
Solution: Check the reset circuit for proper operation. The STM32F030K6T6 typically requires a clean, short reset pulse to initialize correctly. Ensure that the reset pin is not floating and is connected to the appropriate pull-up resistor. Additionally, verify that the external reset components, such as capacitors and resistors, are within specification.
1.4 GPIO Misconfigurations
Incorrectly configured General Purpose Input/Output (GPIO) pins are another common cause of issues. If you have peripherals or external devices connected to the GPIO pins, misconfigured settings can cause conflicts, high current draw, or even damage to the microcontroller.
Solution: Always double-check your GPIO configurations in software. Ensure that pins used for output are set to the correct mode and that their alternate functions are properly selected if necessary. For input pins, make sure they are configured for the correct pull-up or pull-down resistors to prevent floating.
1.5 Debugging Hardware Failures
Another issue that may arise is when the microcontroller appears to be dead or unresponsive. This could be caused by a hardware failure such as damaged pins, traces, or even the microcontroller itself.
Solution: Start by visually inspecting the STM32F030K6T6 for any obvious physical damage, such as burnt components or cracked solder joints. Next, use a multimeter to check for continuity between the power pins and ground. If no issues are found, try programming the microcontroller using the SWD or JTAG interface to see if it responds to debugging signals.
Software Debugging and Configuration
While hardware issues can cause significant challenges, software configurations also play a key role in ensuring the correct operation of the STM32F030K6T6 microcontroller. Let’s explore some of the most common software-related problems and their solutions.
2.1 Firmware Initialization Failures
One of the most frustrating software-related issues is when the firmware doesn’t initialize properly. This can result in unpredictable behavior, such as the microcontroller not communicating with other devices, failing to run code, or entering an infinite loop.
Solution: Check your initialization code for missing or incorrect steps. Make sure that the microcontroller’s peripherals, such as timers, UART, SPI, and I2C, are correctly configured before use. Also, ensure that interrupts are properly enabled, and vector tables are set up correctly, especially if you’re working with low-level boot code.
2.2 Incorrect Peripheral Configuration
Incorrect peripheral configuration can lead to issues such as communication failure (e.g., UART, SPI, I2C not working), incorrect timing, or malfunctioning sensors and actuators.
Solution: Use STM32CubeMX to assist in peripheral configuration. This tool generates initialization code for STM32 microcontrollers, ensuring that all peripherals are configured correctly. Additionally, refer to the STM32F030K6T6’s datasheet and reference manual to understand the specific configuration requirements for each peripheral.
2.3 Flash Programming Issues
If the STM32F030K6T6 isn’t behaving as expected after programming, the issue may be related to how the flash Memory is being written. Common problems include incorrect memory locations, write protection, or an incomplete flash erase.
Solution: Double-check your flash programming sequence. Ensure that the memory regions are properly defined, and that you are erasing the correct sectors before programming new data. Be sure that no write protection bits are set during the programming phase. If you are using an external programmer or debugger, ensure that the programming interface is functioning properly.
2.4 Stack Overflow and Memory Corruption
Memory management is crucial for smooth operation, especially when dealing with embedded systems. A stack overflow or memory corruption issue can cause unexpected resets or unpredictable behavior.
Solution: Implement stack and heap memory checks in your code. STM32 development tools such as STM32CubeIDE and IAR Embedded Workbench can help track memory usage and detect overflows. When using interrupts, make sure the interrupt service routines (ISRs) are not consuming excessive stack space.
2.5 Debugging with SWD/JTAG
For complex software issues, hardware debugging tools like SWD (Serial Wire Debug) or JTAG (Joint Test Action Group) can help you gain deep insights into what’s happening within your microcontroller. These tools allow you to stop the execution, inspect registers, set breakpoints, and step through the code.
Solution: If you're not already using it, integrate a debugger such as the ST-Link V2, which is compatible with the STM32F030K6T6. Make sure your code is compiled with debugging symbols, and use an IDE with good debugging support. If a crash occurs, use the debugger to capture register states and stack traces, which can pinpoint the exact cause of the issue.
2.6 Interrupt Handling Issues
Interrupts are often used in embedded systems to handle time-sensitive tasks. If interrupts are not configured correctly or if there is a conflict in interrupt priorities, your system may fail to respond to critical events.
Solution: Ensure proper interrupt vector table mapping and priority configuration. Review interrupt handlers to ensure they are quick and efficient. Avoid long operations inside interrupt service routines, and use flags or semaphores to defer non-urgent tasks outside the ISR. Misconfigured NVIC (Nested Vector Interrupt Controller) settings can also cause issues, so double-check that your interrupt priorities are set up correctly.
2.7 Library and HAL Misuse
The STM32Cube HAL (Hardware Abstraction Layer) and low-level libraries simplify peripheral configuration and management. However, improper use of these libraries can cause issues like peripheral failures or inefficiencies.
Solution: Familiarize yourself with the STM32 HAL functions, and make sure you are using the latest version of the firmware library. The STM32CubeIDE or STM32CubeMX tool generates initialization code that is optimized for the STM32F030K6T6, ensuring proper peripheral handling. Always check the STM32Cube documentation for details on each peripheral's API and usage.
Conclusion
While troubleshooting STM32F030K6T6 microcontroller-based systems can be daunting, it is essential to approach the problems systematically. The root cause could be in the hardware or software configuration, or it might involve a combination of both. By following best practices for hardware setup, using the right tools, and ensuring proper software initialization, you can resolve common issues effectively. Whether you're a beginner or a seasoned embedded systems developer, understanding the potential pitfalls and solutions for the STM32F030K6T6 will empower you to get the most out of this powerful microcontroller.
