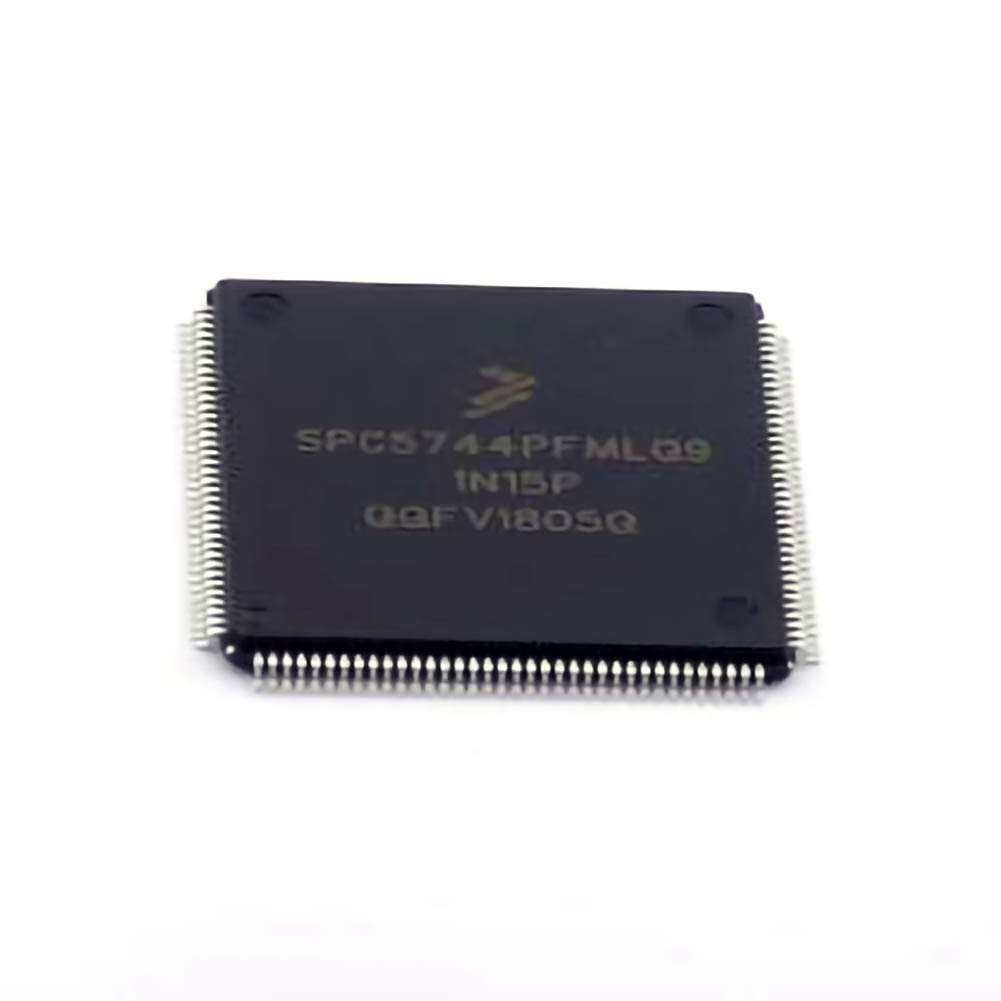

The SPC5744PFK1AMLQ9 Microcontroller – A Game Changer for Automotive Control Systems
The automotive industry is undergoing a rapid transformation, with advancements in vehicle safety, autonomy, connectivity, and electrification demanding increasingly sophisticated electronic control systems. At the heart of these systems lie microcontrollers (MCUs) that ensure precise control, real-time processing, and seamless communication between various components of a vehicle. Among these, the SPC5744PFK1AMLQ9 from STMicroelectronics stands out as an exceptional microcontroller, delivering high performance and advanced capabilities designed to meet the most stringent requirements of modern automotive applications.
Performance and Architecture
The SPC5744PFK1AMLQ9 is built on a robust Power Architecture® e200z4 core, capable of executing complex algorithms and tasks with high efficiency. This 32-bit processor operates at clock speeds of up to 240 MHz, offering substantial processing power to handle real-time tasks in safety-critical applications like powertrain control, braking systems, and driver assistance technologies.
The architecture of the SPC5744PFK1AMLQ9 is designed to support multi-core processing, providing the flexibility to distribute complex tasks across multiple processing units. This means that time-critical operations, such as motor control or real-time data processing, can be executed in parallel, enhancing overall system performance and responsiveness. Moreover, the chip’s floating-point unit (FPU) accelerates mathematical computations, which is particularly useful for high-performance applications like engine control and advanced driver-assistance systems (ADAS).
Safety and Security Features
In automotive control, safety is non-negotiable. The SPC5744PFK1AMLQ9 addresses this with a comprehensive suite of safety features that comply with international automotive safety standards such as ISO 26262. The microcontroller incorporates hardware redundancy, self-testing mechanisms, and fault detection capabilities, ensuring that critical systems continue to function even in the event of a failure or malfunction.
One of the standout features is its Error Correction Code (ECC), which protects memory and ensures data integrity in high-demand environments. The chip also includes watchdog timers, which monitor the MCU’s operation and reset the system in case of a malfunction, thus reducing the risk of system failures.
Additionally, the SPC5744PFK1AMLQ9 offers security features designed to protect sensitive vehicle data. These include secure boot, cryptographic acceleration, and secure key storage, which help safeguard against potential cybersecurity threats. As automotive systems become increasingly connected, the need for robust security mechanisms has never been greater, and the SPC5744PFK1AMLQ9 meets these challenges head-on.
Multi-Application Flexibility
The SPC5744PFK1AMLQ9 is designed to support a wide range of automotive applications, from engine control units (ECUs) to advanced safety systems. Its flexible peripheral set includes multiple PWM channels, ADC inputs, communication interface s (CAN, FlexRay, Ethernet), and timers, making it suitable for both real-time control and diagnostics.
For example, in powertrain control, the SPC5744PFK1AMLQ9 can handle engine management tasks such as fuel injection, ignition timing, and throttle control with great precision, ensuring optimal performance and fuel efficiency. Similarly, in ADAS, the MCU can process sensor data from cameras, LIDAR, and radar to enable features like adaptive cruise control, lane-keeping assistance, and collision detection.
The chip’s high-speed communication interfaces make it easy to integrate into complex networked systems within the vehicle. FlexRay and Ethernet support high-bandwidth communication, enabling the exchange of large amounts of data between ECUs for functions like real-time traffic updates, infotainment, and autonomous driving algorithms.
Real-Time Capabilities
Automotive applications demand low latency and real-time responsiveness, especially for critical systems like braking, steering, and engine control. The SPC5744PFK1AMLQ9’s Real-Time Unit (RTU) and Time-Triggered Architecture (TTA) ensure deterministic and predictable execution of tasks, even under high loads.
The microcontroller’s high-precision timers and event-driven architecture allow for accurate synchronization and scheduling of tasks, making it ideal for systems that require precise timing, such as electric power steering or braking systems. Furthermore, the dual-core capability of the SPC5744PFK1AMLQ9 facilitates the separation of critical safety functions from less safety-critical tasks, ensuring that real-time operations are not interrupted by non-essential processes.
With its ability to handle simultaneous tasks with low latency, the SPC5744PFK1AMLQ9 is a perfect fit for modern automotive control systems where the highest levels of performance and reliability are required.
Leveraging the SPC5744PFK1AMLQ9 to Accelerate Innovation in Automotive Control
As the automotive industry moves towards more complex and integrated systems, the role of microcontrollers like the SPC5744PFK1AMLQ9 has become more critical. This microcontroller is not just about high performance—it’s also about enabling innovation in the design of automotive systems that are safer, more efficient, and more reliable.
Integration with Emerging Automotive Technologies
One of the most significant trends in the automotive industry is the rapid rise of electric vehicles (EVs) and autonomous driving technologies. The SPC5744PFK1AMLQ9 is well-suited to handle the unique challenges of these technologies, providing the processing power and flexibility needed to manage the complex systems that drive them.
In electric vehicles, the MCU can optimize energy management by controlling the electric motor, regulating the charging process, and managing power distribution between the battery and other vehicle subsystems. The SPC5744PFK1AMLQ9 can interface with battery management systems (BMS), helping to monitor battery health and ensure optimal performance. This integration leads to more efficient energy usage, longer battery life, and improved overall vehicle performance.
For autonomous driving, the SPC5744PFK1AMLQ9 can handle data fusion from multiple sensors, including LIDAR, radar, and cameras, enabling real-time decision-making for navigation and control. The microcontroller’s high processing power allows it to quickly analyze and interpret vast amounts of sensor data, making it possible for autonomous vehicles to navigate complex environments with precision and safety.
Scalability and Future-Proofing
One of the most valuable features of the SPC5744PFK1AMLQ9 is its scalability. It is designed to scale with the evolving needs of automotive applications. As vehicle systems become more sophisticated, the demand for more processing power, memory, and communication bandwidth grows. The SPC5744PFK1AMLQ9’s architecture is flexible enough to accommodate these needs, making it a future-proof choice for automotive manufacturers looking to stay ahead of the curve.
Whether it's expanding the number of sensors in an autonomous vehicle or supporting more complex algorithms for predictive maintenance, the SPC5744PFK1AMLQ9 can evolve with the demands of next-generation automotive technologies.
Simplified Development and Time-to-Market
While the SPC5744PFK1AMLQ9 offers a rich set of features, it also provides developers with the tools they need to simplify development and reduce time-to-market. The microcontroller is supported by a comprehensive development ecosystem that includes software libraries, hardware evaluation kits, and development tools that streamline the design process. STMicroelectronics also offers strong technical support and documentation, making it easier for engineers to implement complex features in their automotive control systems.
By reducing development time and ensuring that the design process aligns with industry standards, the SPC5744PFK1AMLQ9 helps manufacturers accelerate the introduction of new features and innovations to the market. In an industry where time-to-market is crucial, this microcontroller provides a competitive edge.
Conclusion
The SPC5744PFK1AMLQ9 microcontroller from STMicroelectronics is a game changer for automotive control systems. Its high-performance capabilities, combined with advanced safety features, real-time processing, and scalability, make it an ideal solution for the demanding requirements of modern automotive applications. Whether enabling autonomous driving, optimizing energy management in electric vehicles, or ensuring the highest standards of safety and reliability, the SPC5744PFK1AMLQ9 is at the forefront of automotive innovation.
As the automotive industry continues to evolve, microcontrollers like the SPC5744PFK1AMLQ9 will play a central role in shaping the future of mobility, making vehicles safer, smarter, and more efficient than ever before. The combination of cutting-edge technology, flexibility, and reliability makes the SPC5744PFK1AMLQ9 a pivotal component in the next generation of automotive systems.
