Introduction to the MC9S12XEP100MAL Microcontroller

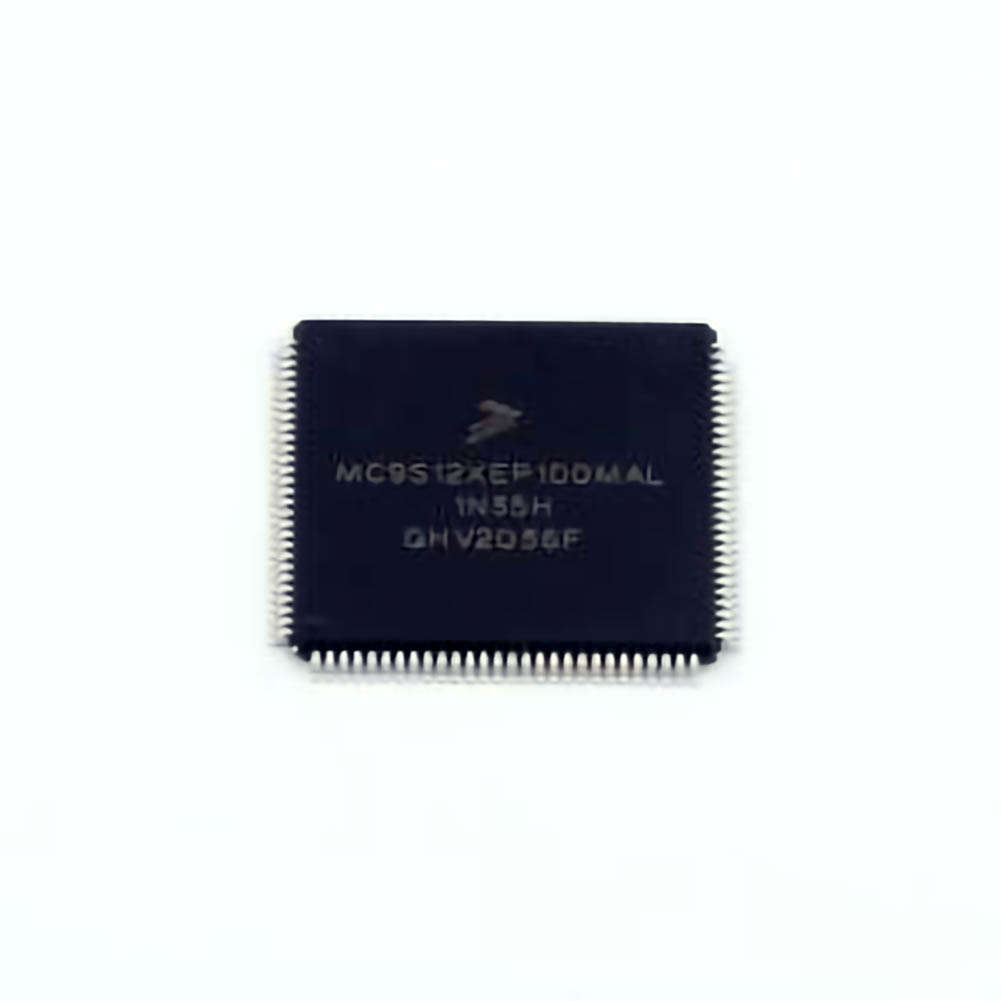

The MC9S12XEP100MAL is a Power ful 16-bit microcontroller designed by NXP for embedded system applications. It offers high processing speed, flexibility, and extensive I/O capabilities, making it ideal for automotive, industrial, and consumer electronics. However, like any sophisticated piece of technology, developers and engineers may face challenges when implementing and troubleshooting this device. In this article, we will explore the most common issues users encounter and provide actionable solutions to help you maintain system stability and efficiency.
1. Power Supply Issues
One of the most common issues with the MC9S12XEP100MAL is power supply instability. Power issues can manifest in many ways, from the device not turning on to unexpected resets or erratic behavior during operation.
Possible Causes:
Insufficient Voltage: The MC9S12XEP100MAL requires a stable voltage between 4.5V and 5.5V. Any fluctuation outside this range may cause operational failures.
Power Supply Noise: Noise in the power supply can interfere with the microcontroller’s performance, causing unpredictable behavior or crashes.
Solutions:
Ensure that the power supply provides a stable and regulated voltage.
Use capacitor s near the power pins of the microcontroller to filter noise and smooth out voltage spikes.
Check the wiring and connections, especially if you are using external power sources, to ensure proper grounding and minimize interference.
2. Communication Failures
The MC9S12XEP100MAL offers multiple communication interface s, including SPI, I2C, and UART. Communication failures between the microcontroller and peripheral devices are frequent problems, especially in complex systems.
Possible Causes:
Incorrect Baud Rate or Settings: Misconfiguration of communication parameters (such as baud rate, parity, and stop bits) often leads to communication issues.
Signal Integrity Issues: Poor connections or incorrect wiring can result in unreliable data transfer or complete failure in communication.
Solutions:
Double-check the configuration settings of the communication interfaces, ensuring that both the microcontroller and the connected device use matching parameters.
Use proper termination and shielding techniques on communication lines to reduce signal interference, especially in high-speed applications.
If possible, implement software error handling and retry mechanisms to handle unexpected communication disruptions.
3. Clock Configuration Problems
Clock configuration is critical for ensuring the proper timing and synchronization of the MC9S12XEP100MAL. Misconfiguring the clock source or system clock can lead to timing errors, application failures, and overall instability.
Possible Causes:
Incorrect Clock Source: The microcontroller offers multiple clock sources, including an internal oscillator and external crystals. Using an inappropriate clock source can cause performance degradation.
Clock Speed Mismatch: If the system clock speed is not set according to the requirements of your application, the device may behave unpredictably.
Solutions:
Verify that the correct clock source is selected in the configuration register, and ensure it matches the specifications required by your application.
Adjust the clock divider to optimize the clock speed for your system’s needs, ensuring proper operation.
Use an external crystal oscillator if greater precision and stability are required.
4. Interrupt Handling Issues
Interrupts are a core feature of the MC9S12XEP100MAL, allowing efficient handling of time-sensitive tasks. However, improper interrupt configuration or handling can lead to missed interrupts, priority issues, or system crashes.
Possible Causes:
Interrupt Vector Table Errors: Incorrect mapping of interrupt vectors may cause the microcontroller to fail to handle interrupts properly.
Interrupt Priority Conflicts: When multiple interrupts occur simultaneously, improper prioritization may cause low-priority interrupts to be ignored.
Solutions:
Carefully review and configure the interrupt vector table to ensure that the correct interrupt service routine (ISR) is mapped to each interrupt source.
Use priority settings to ensure critical interrupts are handled first, and configure the system to prevent priority conflicts.
Implement proper interrupt masking and enable/disable mechanisms to control which interrupts are active at any given time.
5. Software Debugging Challenges
Software development for embedded systems can be challenging, and debugging issues on the MC9S12XEP100MAL requires a structured approach. Common software-related problems include logic errors, Memory corruption, and peripheral misconfiguration.
Possible Causes:
Faulty Software Logic: Errors in program logic, such as incorrect calculations or unhandled exceptions, can lead to unexpected behavior.
Memory Overflows or Corruption: Running out of stack space or corrupting memory can result in crashes or unpredictable system behavior.
Solutions:
Use debugging tools such as breakpoints, step execution, and watch variables to inspect the state of the microcontroller during execution.
Implement a robust error-handling mechanism to catch and resolve unexpected conditions in the software.
Ensure proper memory management, especially when working with dynamic memory allocation or managing large data sets in RAM.
6. Watchdog Timer Failures
The MC9S12XEP100MAL includes a built-in watchdog timer designed to reset the system in case of a malfunction or a software hang. However, improper use of the watchdog timer can lead to unnecessary resets or failure to recover from a fault condition.
Possible Causes:
Watchdog Timer Not Properly Reset: If the watchdog timer is not reset periodically in the software, it will trigger a reset even if the system is running fine.
Incorrect Timeout Configuration: If the watchdog timeout value is set too short, it may cause premature resets.
Solutions:
Ensure that the watchdog timer is reset at regular intervals during normal operation to prevent unintended resets.
Configure the watchdog timeout period based on the application’s timing requirements. Avoid setting it too short, as this may result in unnecessary resets, but also ensure it is not too long to allow for timely recovery from faults.
Implement a fail-safe mechanism that triggers a manual reset in case of a fault condition, allowing the system to recover gracefully.
7. Temperature and Environmental Factors
The MC9S12XEP100MAL, like all electronic components, is sensitive to environmental conditions such as temperature and humidity. Extreme conditions can lead to instability or permanent damage to the microcontroller.
Possible Causes:
Overheating: If the microcontroller operates at high temperatures, it may experience performance degradation, or worse, permanent damage.
Environmental Interference: Electromagnetic interference ( EMI ) or exposure to moisture can cause the system to malfunction.
Solutions:
Ensure the microcontroller operates within its specified temperature range (typically -40°C to 125°C).
Implement proper cooling solutions if the microcontroller is used in high-power applications.
Use protective enclosures to shield the microcontroller from environmental factors like humidity, dust, and EMI.
8. Memory Access Violations
Memory access violations, such as accessing invalid memory addresses or corrupting the program counter, can lead to crashes or system hang-ups in the MC9S12XEP100MAL.
Possible Causes:
Unaligned Memory Access: The microcontroller has specific alignment requirements for accessing memory. Violating these constraints can result in access errors.
Incorrect Memory Mapping: Misconfiguring memory regions or peripheral addresses can cause data corruption or access issues.
Solutions:
Verify that memory accesses are aligned according to the microcontroller’s specifications.
Ensure that the memory regions are correctly mapped and avoid overlapping memory spaces used by different peripherals or program code.
Conclusion: Keeping Your MC9S12XEP100MAL in Top Shape
The MC9S12XEP100MAL microcontroller is a powerful and versatile embedded system component, but like any complex device, it can present challenges during development and operation. By identifying common issues such as power supply problems, communication failures, clock configuration issues, interrupt handling, and software bugs, developers can take the necessary steps to resolve these problems quickly. A systematic approach to troubleshooting and following best practices for hardware and software design will ensure that your MC9S12XEP100MAL operates smoothly and reliably throughout its lifespan.
By addressing these common troubleshooting areas, engineers can maximize the performance and longevity of their systems, reducing downtime and improving the user experience. Remember, effective debugging and testing tools are key to maintaining high system integrity and ensuring that your designs function as intended.
