Understanding the AT91SAM9G35-CU and Common Troubleshooting Techniques

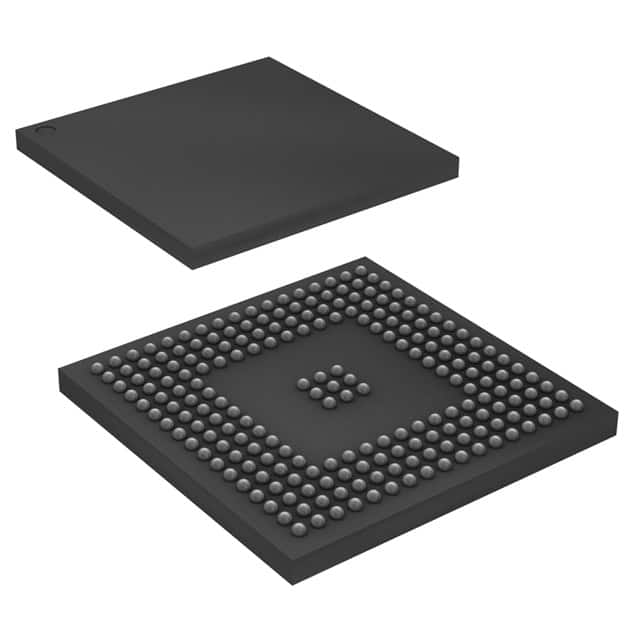

The AT91SAM9G35-CU is a versatile microcontroller from Atmel (now part of Microchip Technology) based on the ARM926EJ-S core. Designed for industrial and Embedded applications, this microcontroller combines Power ful processing capabilities with a wide array of peripheral interface s, making it suitable for a broad range of use cases—from robotics and automation to IoT devices and medical equipment.
However, as with any complex piece of hardware, developers may face challenges during the design, testing, and implementation phases. In this first part, we will cover some of the most common issues faced by developers when working with the AT91SAM9G35-CU and provide practical troubleshooting solutions.
1. Power Supply and Voltage Issues
A primary cause of system instability or failure in embedded systems is related to power supply problems. The AT91SAM9G35-CU requires a stable voltage source to function correctly. The device typically operates at 3.3V logic levels, but you might encounter difficulties if the voltage regulator is not providing the correct power output or if there is an issue with the input power supply.
Solution:
Check Voltage Levels: Ensure that the microcontroller is receiving the proper 3.3V power supply. Use a multimeter to check the voltage across the power supply pins (VDD and GND).
Use Decoupling Capacitors : Place decoupling capacitor s close to the power pins to smooth out voltage spikes or dips that could affect the microcontroller's performance. Recommended values are typically between 0.1 µF and 10 µF.
Verify Power Source: If using an external power supply, verify that it is correctly rated for your circuit. If necessary, use a bench power supply to provide the required voltage and current.
2. Booting and Initialization Failures
When powering up the AT91SAM9G35-CU, it may fail to boot, or the initialization may stall. This issue can be caused by incorrect boot configurations, corrupted bootloader code, or improper connections to external Memory (such as NAND or NOR flash).
Solution:
Check Boot Mode Settings: The AT91SAM9G35-CU uses different boot modes for starting the system. Ensure the BOOT_SEL pins are set correctly to select the appropriate boot device (SD card, NAND flash, or UART).
Examine the Bootloader: If the bootloader is not loading, reflash it via the JTAG or serial interface. Ensure that the bootloader is correctly written to the boot memory and that the memory device is functional.
Check External Memory: If the device relies on external NAND or NOR flash for booting, verify the connection and ensure the memory chip is properly powered and correctly wired.
3. Software Development and Debugging Issues
Developers using the AT91SAM9G35-CU typically encounter issues related to software, especially during the initial stages of development. Debugging these issues requires familiarity with the toolchain and debugging interfaces such as JTAG or SWD (Serial Wire Debug).
Solution:
Use the Correct Toolchain: Make sure you are using the appropriate software development environment, such as Atmel Studio or an open-source toolchain like GCC with ARM support. Installing the correct version of the toolchain can eliminate many compilation or linking errors.
Debugging Interface: Use a JTAG debugger or an SWD interface to step through the code and identify issues such as memory Access violations, uninitialized variables, or runtime errors.
Check for Memory Leaks: If the system becomes unresponsive or slow, check for memory leaks in your application. Ensure that dynamic memory allocation is properly managed, and there is no excessive memory consumption.
4. Peripheral Interface Issues
The AT91SAM9G35-CU supports a variety of peripheral interfaces, including USB, SPI, I2C, UART, and GPIO. Incorrect configuration of these peripherals can lead to communication failures or poor system performance.
Solution:
Verify Pin Multiplexing: The AT91SAM9G35-CU has multiple functions for each pin, so incorrect pin multiplexing can lead to peripheral failures. Make sure the pin functions are correctly configured in your initialization code.
Check Baud Rates and Timing : For UART communication, verify that the baud rate is correctly set and matches the external device's configuration. Similarly, for SPI and I2C, check the Clock speeds and timing parameters to ensure proper synchronization.
Check Signal Integrity: For high-speed interfaces like USB or SPI, ensure that there is minimal signal degradation or interference. Use proper trace routing and impedance matching on the PCB to reduce signal reflections and noise.
5. Bootloader and Firmware Update Failures
Firmware updates and bootloader flashing are common tasks for engineers working with embedded systems. However, if the firmware update process fails, it can cause the device to become unresponsive or "bricked."
Solution:
Use a Programmer: To recover from firmware issues, use a hardware programmer (such as a JTAG or USB bootloader) to reload the firmware. The AT91SAM9G35-CU supports recovery through its JTAG interface or serial bootloader.
Reflash the Bootloader: If the issue is related to the bootloader, reflash it using a working version stored on an external medium, such as an SD card or USB stick.
Check for Memory Corruption: Sometimes, firmware corruption can occur due to power loss during updates. Use memory diagnostic tools to check for integrity issues in the system's flash or RAM.
6. Overheating and Thermal Management
Embedded systems can sometimes face thermal issues, especially when the device is running high-power tasks or operating in a confined space with limited ventilation.
Solution:
Monitor Temperature: Use a temperature sensor to monitor the microcontroller's temperature during operation. Ensure that the ambient temperature is within the recommended operating range for the AT91SAM9G35-CU (typically between 0°C and 85°C).
Add Heat Sinks: If necessary, attach heat sinks to the microcontroller to help dissipate excess heat. Alternatively, use a fan or active cooling system if your application demands higher processing power.
Ensure Adequate Ventilation: In embedded systems that are enclosed in a case, ensure that the enclosure provides adequate ventilation to allow hot air to escape and cool air to enter.
Advanced Troubleshooting and Solutions for the AT91SAM9G35-CU
In the second part of this article, we will explore more advanced troubleshooting topics and solutions to help developers resolve complex issues they may encounter while working with the AT91SAM9G35-CU microcontroller. These issues often involve intricate hardware configurations, advanced debugging techniques, and optimization strategies.
7. Memory and Data Corruption
Memory corruption can lead to unpredictable behavior, system crashes, or incorrect outputs. This is particularly troublesome when working with embedded systems that require high reliability and long uptime.
Solution:
Check for Power Glitches: Memory corruption is often caused by unstable power supply or sudden power loss. Implement power failure detection mechanisms and use non-volatile memory to store critical data.
Implement Watchdog Timers: Use the microcontroller’s built-in watchdog timer to reset the system in case it hangs due to memory corruption. The watchdog timer can automatically restart the system and ensure that the system continues to operate even if it encounters a fault.
Error Detection Codes (EDC): For critical applications, implement error detection and correction codes (like ECC) to prevent data corruption in RAM or flash memory.
8. Real-Time Clock (RTC) Failures
Many embedded applications rely on the Real-Time Clock (RTC) for accurate timekeeping, especially in applications like logging, event scheduling, or power management. RTC issues can arise from incorrect configuration, power supply problems, or a malfunctioning crystal oscillator.
Solution:
Check RTC Battery: The AT91SAM9G35-CU’s RTC requires a backup battery (usually a coin cell) to maintain time when the main power is off. If the battery is depleted, the RTC may stop functioning.
Verify Crystal Oscillator: The RTC uses an external 32.768 kHz crystal for accurate timekeeping. Make sure the crystal is correctly connected and not damaged.
Software Configuration: Ensure that the RTC is correctly configured in software, including setting the correct time zone and enabling periodic interrupts for time-based events.
9. Security and Encryption Issues
Security is becoming increasingly important in embedded systems, especially in IoT and industrial applications. The AT91SAM9G35-CU offers various features like secure boot and hardware encryption to protect sensitive data.
Solution:
Check Secure Boot Configuration: If your application requires secure boot, ensure that the bootloader is properly signed and the secure boot feature is enabled. Verify that the public keys are correctly stored in non-volatile memory.
Enable Cryptographic Features: The AT91SAM9G35-CU supports cryptographic operations such as AES and RSA. Implement these features using the appropriate cryptographic libraries and ensure they are securely configured.
10. Connectivity Issues (Ethernet, Wi-Fi, Bluetooth)
Embedded systems often rely on networking protocols like Ethernet, Wi-Fi, or Bluetooth for communication. Problems with these interfaces can lead to slow performance, connection drops, or complete failure to connect.
Solution:
Check Physical Connections: For Ethernet, ensure that the cable is properly connected and that the network interface controller (NIC) is functional. For wireless communication, ensure antenna s are attached and configured correctly.
Verify Network Settings: Double-check IP address settings, subnet masks, and gateway configurations. For Wi-Fi, ensure correct SSID, password, and encryption settings are applied.
Monitor Signal Strength: For wireless connections, poor signal strength can lead to intermittent connectivity. Use diagnostic tools to monitor signal strength and optimize the placement of the wireless module .
11. Advanced Debugging Techniques
As your project matures, you may encounter difficult-to-diagnose issues that require advanced debugging techniques. Using the right tools and methods can help you pinpoint problems more efficiently.
Solution:
Use Logic Analyzers: A logic analyzer can be invaluable for troubleshooting communication issues between the microcontroller and peripheral devices. It can capture and analyze signals, revealing issues like data corruption or timing mismatches.
Perform Boundary Scan Testing: Use the JTAG interface for boundary scan testing to ensure that all I/O pins and peripherals are functioning as expected. This can be especially useful for diagnosing PCB-level issues.
Monitor Power Consumption: Advanced power analysis tools can help track down power-related issues by providing insights into the microcontroller’s current draw at different stages of operation.
12. Optimizing System Performance
Finally, once your system is stable, you may want to optimize its performance to achieve better speed, efficiency, or power consumption.
Solution:
Use DMA for Data Transfer: The AT91SAM9G35-CU supports Direct Memory Access (DMA), which can offload data transfer tasks from the CPU, resulting in reduced CPU load and faster processing times.
Optimize Interrupt Handling: Minimize the time spent handling interrupts by using efficient interrupt service routines (ISRs) and prioritizing critical tasks. This can improve real-time performance and system responsiveness.
Enable Sleep Modes: Use the microcontroller’s low-power modes to reduce energy consumption when the system is idle. Make sure to configure wake-up sources properly to allow the system to resume operation when needed.
With these troubleshooting tips and solutions, you are well-equipped to handle common and advanced issues when working with the AT91SAM9G35-CU microcontroller. By following these strategies, you can ensure a smooth development process and create reliable, high-performance embedded systems.
